A-VRR - Adaptable Vertical Response Rack
- Haul / Mechanical Advantage Capability – Multiple simple, compound and complex configurations ranging from a 2:1 through 9:1
- Full spectrum Friction Configurations for Rappels, Bail-outs, And One or Two Person Lowering Systems
- Traditional and Mechanical Advantage assisted Ascending Techniques
- Multiple Basic and Anchor Configurations to Include Contingency and Releasable Systems
- Load Transfer Capabilities to include Knot Passing on Rappel and within a system and casualty Pick-Offs
The Adaptable Vertical Response Rack was designed meet and exceed full-spectrum operational vertical requirements for urban through mountain / canyon access, rescue, and evacuation variables. The kit capabilities were driven utilizing NFPA 1006 (Operations & Technician Level) JPR’s (Job Performance Requirements) and the KPP’s (Key Performance Parameters) within the USSOCOM SOF CASEVAC Program framework. The A-VRR kits organic versatility allows it to be scaled up to meet all relevant JPR’s (Job Performance Requirements) for complex team access and/or rescue or be scaled down for a “fast & light” mission specific assault configuration. P-A-C-E (Primary, Alternate, Contingency, and Emergency) methodology was engineered throughout the kit design, enabling multiple options for progressive capture and rope grab capabilities depending on the environmental pathology.

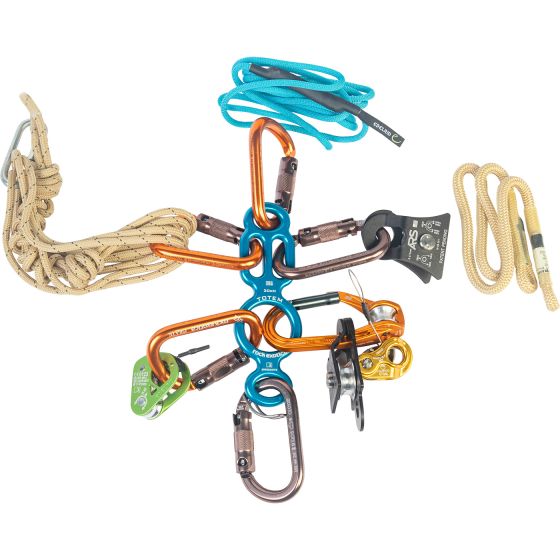

Kit Contents
- 1 x Totem Multi Function Descent Control Device
- 1 x Oval Auto-lock Carabiner
- 1 x Oval Auto-lock Carabiner with Wire Eye
- 3 x HMS Auto-lock Carabiner
- 1 x MagnaPulley 7/16 in. Small Pulley Pair - with and without Becket
- 1 x Pulley with Integrated Rope Grab
- 1 x H-Frame Non-Locking Carabiner with Integrated Pulley
- 1 x Rope Clamp / Ascender
- 1 x 6mm TRC Cord - 16 ft
- 1 x 7mm VT Prusik
- 1 x Edelrid HMPE Cord Blue Sling - 120 CM
- 1 x 7mm Screw Link
Dimensions:
- 12 in. x 15 in. (bag)
- 3.25 lb (for packaged kit)
